Statistical Peak Filtering

This page introduces the statistical peak-filtering module in MassFlow.

Authors: Leqiang Dong, Jingwei Dong

Feedback: If you find any problems while using MassFlow or reading the documentation, you can submit feedback through GitHub Issues, or contact us by email at 707244007@qq.com.

Overview

After peak alignment, all pixels share the same m/z axis. This axis may contain random peaks that appear in only a very small number of pixels or peaks with very low overall intensity. Statistical peak filtering calculates the occurrence count and aggregated intensity of every shared m/z position across the entire dataset, builds a global retention mask keep_mask, and applies the same filtering result to all spectra.

• The input must be aligned, continuous data with a shared m/z axis continuous=True.
• This is a dataset-level operation. The complete dataset is scanned once to calculate statistics, then scanned again to apply the mask and write the result.
• Occurrence count/frequency conditions and intensity conditions are combined using logical AND.
• The output remains continuous data, but both the shared m/z axis and the intensity vector of every spectrum are shortened together.

Function Description

Preprocessor.filter_peaks_by_stats

massflow.preprocess.api.PreprocessorAPI.filter_peaks_by_stats(
    *,
    min_count: int | None = None,
    min_frequency: float | None = None,
    intensity_method: Literal["mean", "sum"] = "mean",
    min_intensity: float | None = None,
    intensity_quantile: float | None = 0.01,
    output_path: str | None = None,
) -> Self

• Function: filters the shared m/z axis according to peak occurrence support and aggregated intensity.

• Parameters:

  • min_count: minimum number of spectra in which an m/z position has positive intensity. This is suitable when the number of spectra is fixed and thresholds do not need to be compared directly across datasets.
  • min_frequency: minimum occurrence frequency in the range [0, 1]; frequency is calculated as counts / spectrum_count. This is more suitable for datasets with different numbers of spectra. For example, 0.01 means the peak must appear in at least 1% of the spectra.
  • intensity_method: choose average intensity "mean" or total intensity "sum".
    • mean treats missing positions as zero when averaging over the total number of spectra, emphasizing the overall signal across pixels.
    • sum changes with the number of spectra, so thresholds should be compared cautiously across datasets.
  • min_intensity: absolute lower limit for aggregation intensity; the default is None. When set, only m/z positions with an aggregation intensity equal to or greater than this threshold are retained.
  • intensity_quantile: removes the lowest portion of peaks according to the intensity distribution of the complete peak set. Range: (0, 1). This is a relative threshold and is useful for removing a globally weak fraction of m/z positions. If you only want to use occurrence count/frequency conditions, set intensity_quantile=None.
  • output_path: imZML output path for this dataset-level filtering stage. The final path can also usually be specified once in Preprocessor(..., output_path=...).

  Output:

  • the filtered .imZML file and its matching .ibd file.

Example:

from massflow.data_manager import MSDataManagerImzML
from massflow.preprocess import Preprocessor

dm = MSDataManagerImzML(filepath="data/example.imzML")
dm.load_head_data()

filtered = (
    Preprocessor(
        dm,
        batch_size=512,
        temp_dir="temp/preprocess",
        output_path="data/stat_filtered.imzML",
    )
    .peak_pick()
    .peak_align()
    .filter_peaks_by_stats(
        min_frequency=0.01,
        intensity_quantile=0.05,
        intensity_method="mean",
    )
    .start()
)

filtered.close()
dm.close()

This example performs the following steps:

1. Read the imZML data.
2. Perform peak picking.
3. Complete peak alignment.
4. Apply statistical peak filtering.

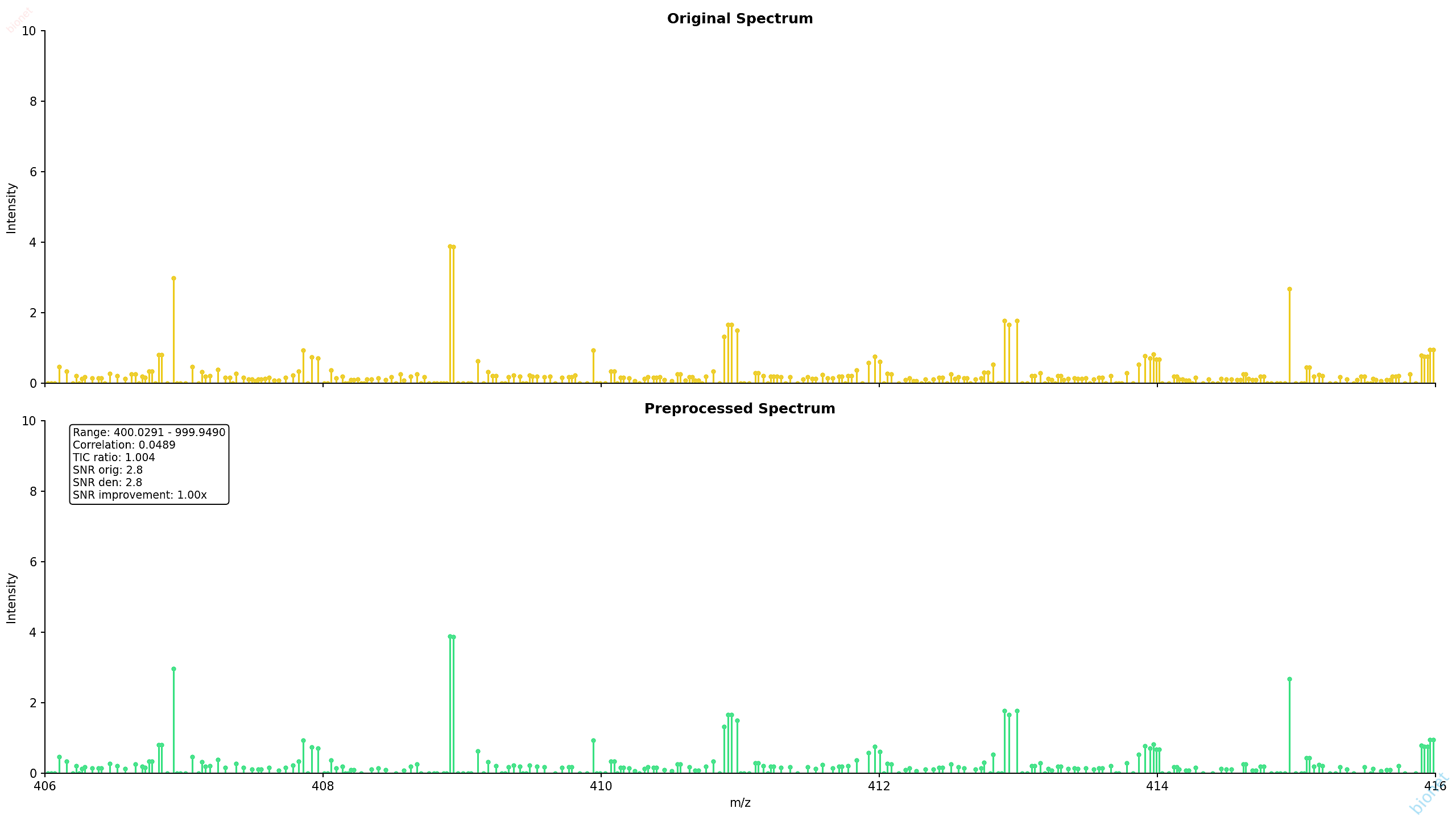

Comparison before and after filtering:

plot_peak_filter_histogram

massflow.tools.plot_peak_filter.plot_peak_filter_histogram(
    count_display: CountDisplay = "frequency",
    intensity_method: IntensityMethod = "mean",
    min_count: int | None = None,
    min_frequency: float | None = None,
    quantile: float | None = None,
 	show: bool = True,
    output_path: str | Path | None = None,
)

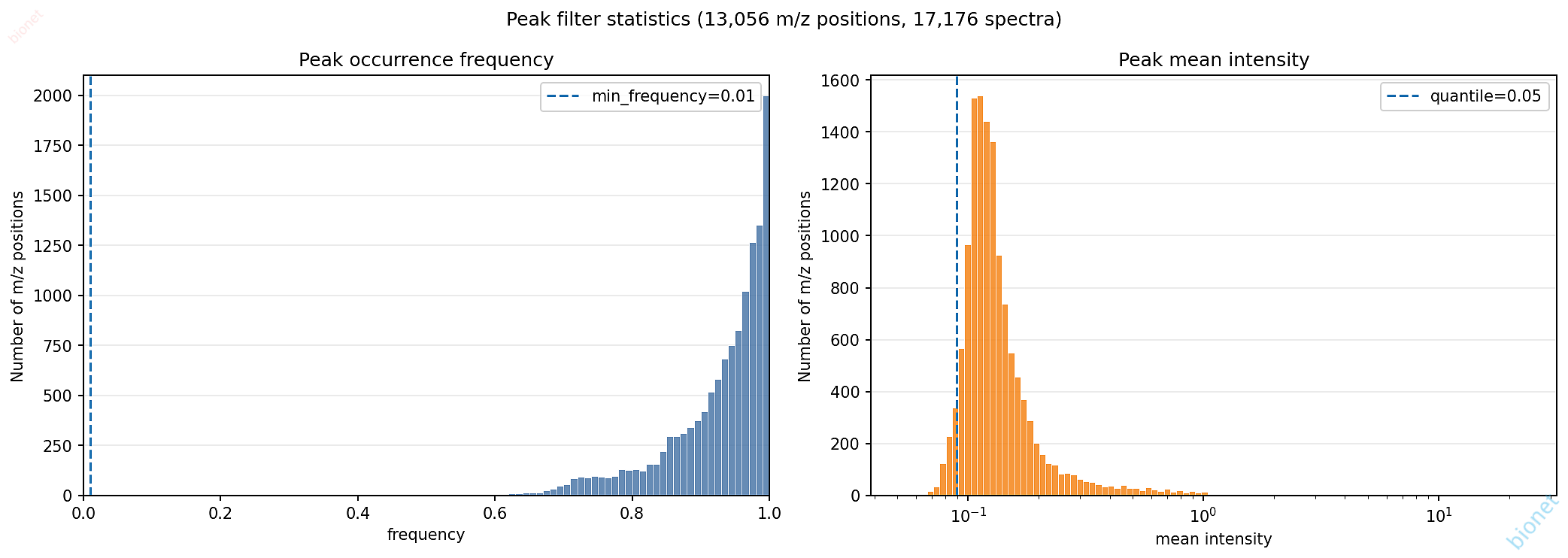

• Function: calculates statistical results and plots the distributions of peak occurrence frequency and intensity together with threshold lines. It can be used to check the occurrence count/frequency and aggregated-intensity distributions.

• - Parameters:

  • count_display: Controls how peak occurrences are displayed. “frequency” indicates the frequency of a peak’s occurrence across all mass spectra; if count is used, the actual number of spectra in which each peak appears is displayed.

  • intensity_method: The aggregation method used to calculate the overall intensity of each peak. In the example, “mean” indicates that the average intensity of the peak across all mass spectra is used.

  • min_frequency: The reference threshold for peak occurrence frequency. 0.01 means the peak must appear in at least approximately 1% of the mass spectra. This parameter is used in the preview to draw a frequency threshold line; it does not remove peaks on its own.

  • min_count: A reference threshold for the number of times a peak must appear. For example, an input value of 10 means that a peak must appear in at least 10 mass spectra to be retained; if it appears in 9 or fewer mass spectra, it will be filtered out.

  • quantile: The quantile threshold for aggregated intensity. 0.05 indicates that the 5th percentile of the aggregated intensities of all peaks is used as the reference threshold.

• Return value: profile contains peak statistics calculated from the current data, including the information required for subsequent statistical peak filtering. It can be passed to the formal filtering function to avoid recalculating the statistics.

• Feature: it does not delete peaks. The returned profile can be reused for formal filtering.

example:

from massflow.tools.plot_peak_filter import plot_peak_filter_histogram

# Peak alignment must be completed before using this function

profile = plot_peak_filter_histogram(
    aligned_dm,
    count_display="frequency",
    intensity_method="mean",
    min_frequency=0.01,
    quantile=0.05,
    output_path="figures/peak_filter_preview.png",
    show=False,
)

filter_peaks_by_stats

preprocess.helper.stat_filter_helper.filter_peaks_by_stats(
    data_manager: MSDataManagerImzML,
    *,
    profile: PeakFilterProfile | None = None,
    min_count: int | None = None,
    min_frequency: float | None = None,
    intensity_method: Literal["mean", "sum"] = "mean",
    min_intensity: float | None = None,
    intensity_quantile: float | None = None,
    output_path: str | Path | None = None,
    temp_dir: str | Path | None = None,
    batch_size: int = 256,
) -> MSDataManagerImzML

• Function: formally removes peaks using preview statistics that have already been inspected.
• Requirement: profile should come from the current dataset and the currently loaded region. The code checks that the shared m/z axis is exactly the same, but it does not verify that the statistical values were calculated from exactly the same set of pixels.
• At least one of min_count, min_frequency, min_intensity, or intensity_quantile must be enabled.

Preview-Then-Apply Workflow

You can use plot_peak_filter_histogram to preview the peak occurrence-frequency and intensity distributions first. After manual inspection, use filter_peaks_by_stats to apply the statistical criteria and generate a filtered dataset.

Example:

from massflow.preprocess.helper.stat_filter_helper import filter_peaks_by_stats
from massflow.tools.plot_peak_filter import plot_peak_filter_histogram

# Peak alignment must be completed before this step
profile = plot_peak_filter_histogram(
    aligned_dm,
    count_display="frequency",
    intensity_method="mean",
    min_frequency=0.05,
    quantile=0.01,
    output_path="figures/stat_filter_preview.png",
    show=False,
)

filtered_dm = filter_peaks_by_stats(
    aligned_dm,
    profile=profile,
    min_frequency=0.05,
    intensity_method="mean",
    intensity_quantile=0.01,
    output_path="data/stat_filtered.imzML",
)

This process has two steps:

1. plot_peak_filter_histogram scans all spectra in the currently loaded region, creates the plot, and returns reusable statistical results.
2. filter_peaks_by_stats uses the same statistics to construct the retention criteria and writes a new dataset.

Overall Workflow

Mask Semantics

Each condition first creates its own Boolean mask. The final mask uses logical AND:

keep = count_mask AND intensity_mask

The specific comparison rules are:

Condition	Retention rule
min_count	counts >= min_count
min_frequency	frequencies >= min_frequency
min_intensity	intensity >= min_intensity
intensity_quantile	intensity > quantile(intensity, q)

Note that the quantile condition uses a strict greater-than comparison. Therefore, m/z positions exactly equal to the quantile threshold are also removed. If many peaks are exactly equal to the quantile threshold, the actual removal proportion may exceed the configured value.

Error Handling

• Non-continuous data raise a ValueError; run peak_align first.
• If all thresholds are None, a ValueError is raised.
• intensity_method must be "mean" or "sum".
• Empty data or a profile whose m/z axis does not match the current data are rejected.

References

• preprocess/helper/stat_filter_helper.py: statistical objects, masks, and public filtering operations
• preprocess/numba/stat_filter_numba.py: statistical aggregation and shared-mask write-back kernels
• tools/plot_peak_filter.py: threshold-distribution preview
• preprocess/api.py: PreprocessorAPI.filter_peaks_by_stats, API entry point for statistical peak filtering
• preprocess/pipeline/planner.py: dataset-level task order and final output routing
