Loading and Plotting Ion Images

This page introduces the functions for loading and plotting ion images and total ion current (TIC) images in MassFlow.

Authors: Leqiang Dong, Jingwei Dong

Feedback: If you find any problems while using MassFlow or reading the documentation, you can submit feedback through GitHub Issues, or contact us by email at 707244007@qq.com.

Overview

An ion image is used to inspect the spatial distribution of a particular m/z signal in a tissue section. Each position in the image corresponds to an acquisition pixel, and the color represents the signal intensity near the target m/z value at that pixel.

A total ion current image (TIC image) sums all intensities in each pixel spectrum. It can be used to quickly inspect:

• the approximate outline of the tissue;
• whether blank regions, unusually bright spots, or scan gaps are present;
• whether the data coordinates are broadly consistent with the actual tissue-section orientation;
• whether the spatial data provide a usable basis for subsequent tissue-region segmentation.

This module can directly read:

• imZML data: MSDataManagerImzML;
• MassFlow Binary ion-image data: IonImageDataManagerBinary;
• MassFlow H5 ion-image data: IonImageDataManagerH5;
• MassFlow ion-image Zarr data: IonImageDataManagerZarr.

For imZML data, all pixels may share the same m/z array, or each pixel may store its own peak list. The latter is commonly referred to as processed data in file metadata. For this type of data, the program searches for the target m/z separately in each spectrum.

Function Description

read_ion_image (Use When You Need the Numerical Matrix)

massflow.tools.plot_ion_image.read_ion_image(
    data_manager,
    *,
    mz: float | None = None,
    batch_size: int = 256,
    max_threads: int = 2,
    mz_tolerance: float | None = None,
) -> numpy.ndarray

• Function: loads the ion image for a target m/z and returns a two-dimensional intensity matrix.
• Feature: it only reads the data; it does not display or automatically save an image.
• Parameters:
  • data_manager: the opened dataset.
  • mz: target m/z; this parameter is required.
  • batch_size: number of spectra read per imZML batch, default 256. Increasing it may improve reading speed but also increases memory usage.
  • max_threads: maximum number of threads used for imZML reading, default 2.
  • mz_tolerance: absolute range on each side of the target m/z. When set as None, only the single position closest to the target value is read. When a value is provided, all intensities within the range are summed. This parameter must be non-negative.
• Output:
  • a two-dimensional matrix with shape “image height × image width”;
  • unacquired positions are usually 0.

plot_ion_image

massflow.tools.plot_ion_image.plot_ion_image(
    data_manager,
    *,
    mz: float | None = None,
    batch_size: int = 256,
    max_threads: int = 2,
    mz_tolerance: float | None = None,
    output_path: str | Path | None = None,
    show: bool = True,
    dpi: int = 300,
    figsize: tuple[float, float] = (20, 5),
    title: str | None = None,
    structure_only: bool = False,
    cmap: str = "viridis",
    percentiles: tuple[float, float] = (0, 95),
    scale_factor: float = 1,
) -> None

• Function: reads the target m/z and plots an ion image.
• Parameters:
  • mz, batch_size, max_threads, mz_tolerance: same as in read_ion_image.
  • output_path: image output path. When specified, the parent directory is created automatically and the image is saved.
  • show: whether to display the image. For batch scripts, False is recommended. When show=True, the image is displayed after the code finishes running.
  • dpi: image resolution, default 300.
  • figsize: canvas size for an image that includes axes.
  • title: image title.
  • structure_only: when True, only the actually acquired region is retained and the background is transparent. Axes, color bar, and title are not displayed. To read the intensity range represented by the colors, use structure_only=False.
  • cmap: Sets the color scheme for the ion map; the default is “viridis”. You can use color schemes supported by the plotting library, such as “plasma”, “inferno”, ‘magma’, and “cividis”. For more information on how to set this, refer to the documentation on Matplotlib's cmap parameter.
  • percentiles: displayed color range, default percentiles=(0, 95). Lowering the upper percentile can make weak signals more visible, but may also saturate high-intensity regions.
  • scale_factor: overall image scaling factor; it must be greater than 0.
• Output: the generated ion image.

Example:

from massflow.data_manager import MSDataManagerImzML
from massflow.tools.plot_ion_image import plot_ion_image


dm = MSDataManagerImzML(filepath="data/example.imzML")
dm.load_head_data()

plot_ion_image(
    dm,
    mz=500.2000,
    mz_tolerance=0.01,
    output_path="figures/ion_500_2000.png",
    title="m/z 500.2000",
    structure_only=False,
    percentiles=(0, 95),
    show=False,
)

dm.close()

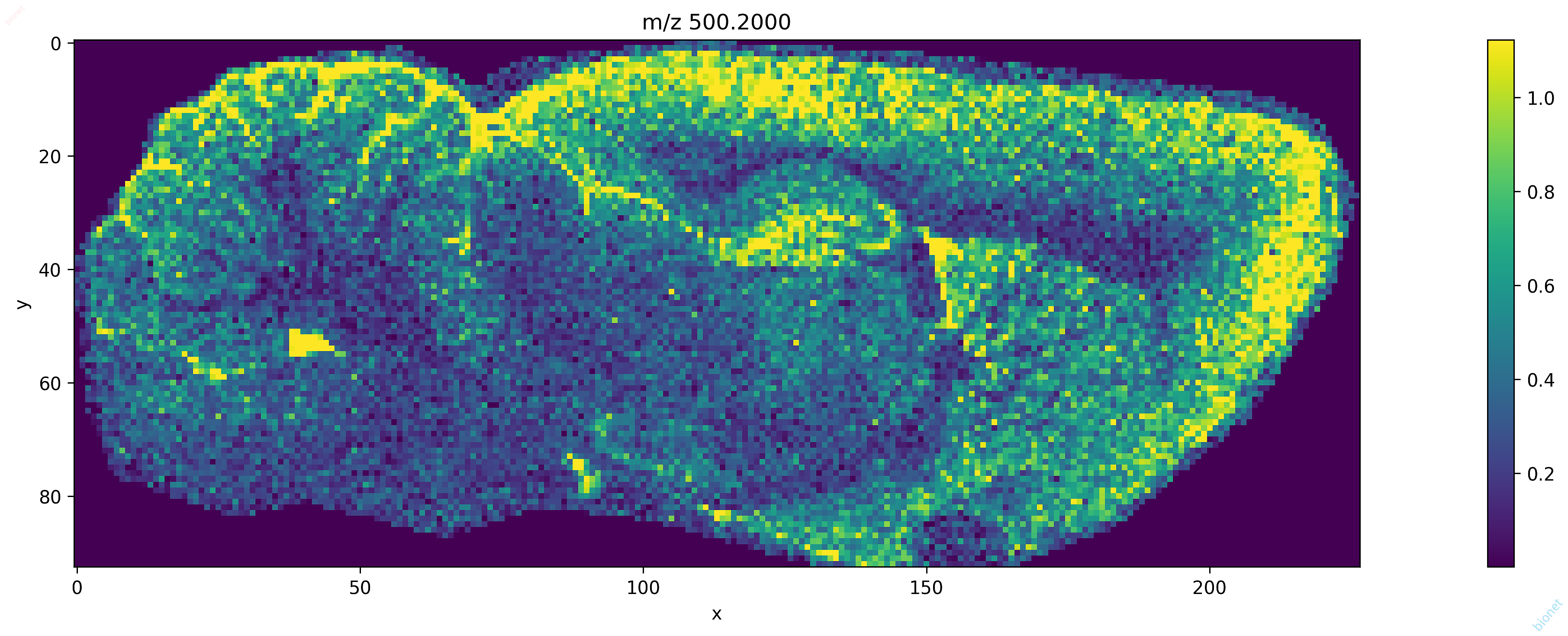

Example ion-image output:

read_tic_image (Use When You Need the Numerical Matrix)

massflow.tools.plot_ion_image.read_tic_image(
    data_manager,
    *,
    batch_size: int = 256,
    max_threads: int = 2,
) -> numpy.ndarray

• Function: sums all intensities in each pixel spectrum and returns a two-dimensional TIC matrix.
• Output: a two-dimensional matrix with shape “image height × image width.”
• Feature: it does not save an image or modify the data.

plot_tic_image

massflow.tools.plot_ion_image.plot_tic_image(
    data_manager,
    *,
    batch_size: int = 256,
    max_threads: int = 2,
    output_path: str | Path = "./tic_image_output/tic_image.png",
    save_image: bool = True,
    save_matrix: bool = False,
    show: bool = False,
    dpi: int = 300,
    figsize: tuple[float, float] = (20, 5),
    title: str | None = None,
    structure_only: bool = True,
    cmap: str = "viridis",
    percentiles: tuple[float, float] = (0, 95),
    scale_factor: float = 1,
) -> bool

• Function: generates and saves a TIC image.
• Parameters:
  • save_image: whether to save the image, default True.
  • save_matrix: whether to also save the numerical TIC matrix, default False.
  • structure_only: default True, which outputs a tissue-outline image on a transparent background. Axes, color bar, and title are not displayed in this mode. To read the intensity range represented by the colors, use structure_only=False.
  • Other plotting parameters are the same as in plot_ion_image.
• Output:
  • by default, the TIC image is saved as tic_image.png;
  • when save_matrix=True, a tic_result.zarr file is generated in the same folder as the image, with an array named tic_matrix.

Example:

from massflow.data_manager import MSDataManagerImzML
from massflow.tools.plot_ion_image import plot_tic_image


dm = MSDataManagerImzML(filepath="data/example.imzML")
dm.load_head_data()

plot_tic_image(
    dm,
    output_path="figures/tic_image.png",
    save_image=True,
    save_matrix=True,
    structure_only=True,
    show=False,
)

dm.close()

Example TIC output:

Reading MassFlow Ion-Image Formats

When data have already been saved as Binary, H5, or ion-image Zarr, there is no need to call load_head_data().

from massflow.data_manager import IonImageDataManagerZarr
from massflow.tools.plot_ion_image import plot_ion_image


dm = IonImageDataManagerZarr(
    filepath="data/example_ion_image.zarr",
    mode="r",
)

For Binary and H5, only the data manager needs to be changed:

from massflow.data_manager import (
    IonImageDataManagerBinary,
    IonImageDataManagerH5,
)

binary_dm = IonImageDataManagerBinary(filepath="data/example.iib", mode="r")
h5_dm = IonImageDataManagerH5(filepath="data/example.h5", mode="r")

Overall Workflow

How m/z Is Selected

Without mz_tolerance

mz_tolerance=None

The program selects the m/z position closest to the target value:

• for data with a shared m/z axis, the same nearest position is used for the entire dataset;
• for processed imZML data, each spectrum searches independently for its own nearest position;
• even if the nearest position is far from the target value, the program does not reject it automatically. Users should check the actual m/z axis and the instrument mass error first.

With mz_tolerance

mz=500.0
mz_tolerance=0.01

The program sums intensities in the following range:

499.99 <= m/z <= 500.01

The boundaries are included. If multiple m/z positions fall inside the range, their intensities are summed. If no positions fall inside the range, the result is 0.

mz_tolerance uses absolute m/z units. The current function does not provide a ppm option. If your experimental method uses ppm, convert it to an absolute range around the target m/z first.

How to Choose the Tolerance

• A tolerance that is too small may miss a target peak with slight drift.
• A tolerance that is too large may also sum neighboring compounds, isotope peaks, or other interfering peaks.
• For processed data, peak positions may differ between pixels, so the range should be selected according to the instrument's mass accuracy.
• For peak-aligned data, a smaller range can usually be used, or the nearest m/z position can be selected directly.

Error Handling

• Error "'mz' is required": no mz value was provided when calling an ion-image function.
• No pixels are read: check the file contents, target_locs, and whether the data were opened successfully.
• The image is almost entirely black: try lowering the upper percentiles value and check whether the target m/z exists.
• Large regions are saturated: increase the upper percentiles value or check for extremely high-intensity pixels.

References

• tools/plot_ion_image.py: public functions for ion-image and TIC loading and plotting
• data_manager/ms_data_manager_imzml.py: imZML data loading
• data_manager/ion_image_data_manager_binary.py: Binary ion-image data
• data_manager/ion_image_data_manager_h5.py: H5 ion-image data
• data_manager/ion_image_data_manager_zarr.py: ion-image Zarr data
