This document introduces the noise suppression and filtering module in MassFlow, focusing on the functions in preprocess/filter_helper.py and their coordinated use with MSIPreprocessor.noise_reduction_spectrum. The content includes API descriptions, example code, parameters and tuning suggestions, application scenarios, and common issues.

Overview

• Input and Output
  • Input: module.ms_module.SpectrumBaseModule (1D intensity must exist; mz_list is optional)
  • Output: All function calls should be made through the MSIPreprocessor.noise_reduction_spectrum method.
• Algorithm Categories
  • Time-domain convolution smoothing: smooth_signal_ma (moving average/custom kernel), smooth_signal_gaussian (discrete Gaussian)
  • Polynomial fitting smoothing: smooth_signal_savgol (Savitzky-Golay)
  • Wavelet denoising: smooth_signal_wavelet (thresholding based on PyWavelets)
  • Smoothing based on m/z neighborhood search: smooth_ns_signal_ma, smooth_ns_signal_gaussian, smooth_ns_signal_bi (bilateral)
• Preprocessing
  • smooth_preprocess: Sets negative intensities to zero; optional utility, not automatically called by noise_reduction_spectrum.

Function Relationship Diagram

Core API

MSIPreprocessor.noise_reduction_spectrum

preprocess.ms_preprocess.MSIPreprocessor.noise_reduction_spectrum(
  data: SpectrumBaseModule | SpectrumImzML,
  method: str = "ma",
  window: int = 5,
  sd: float | None = None,
  sd_intensity: float | None = None,
  p: int = 2,
  coef: np.ndarray | None = None,
  polyorder: int = 2,
  wavelet: str = "db4",
  threshold_mode: str = "soft",
) -> SpectrumBaseModule

• Description: Unified entry point for denoising. Dispatches to the specific filter implementation based on method, and returns a spectrum object with the same coordinates as the input, where intensity is the smoothed result.
• Supported methods:
  • ma, gaussian, savgol, wavelet
  • ma_ns, gaussian_ns, bi_ns
• Returns: A new SpectrumBaseModule instance, with mz_list and coordinates preserved, and intensity replaced with the smoothed result.
• Exceptions:
  • ValueError: unsupported method.
  • TypeError: invalid input type.

smooth_signal_ma

preprocess.filter_helper.smooth_signal_ma(
  intensity: np.ndarray,
  coef: np.ndarray | None = None,
  window: int = 5,
) -> np.ndarray

• Notes: When passing coef, it is normalized automatically; its length determines the effective window.
• Description: Moving average (or custom convolution kernel) smoothing. Uses edge padding for 1D boundaries and automatically normalizes weights.
• Parameters(Note that only the following parameters are available, other parameters do not affect the effectiveness of this smoothing method.):
  • coef: Convolution kernel; if None, a uniform kernel of length window is used.
  • window: Window length (positive integer; if even and coef is None, it is automatically coerced to odd for centered alignment).
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: window <= 0 or even when coef is None,intensity is not a 1D array.
  • TypeError: window must be integer when coef is None，coef must be a non-empty 1D numpy array when provided.

Example:

denoised_spectrum = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="ma",
    window=7
)

Example:

import sys
import os
from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt
from module.ms_module import MS, SpectrumBaseModule
from module.ms_data_manager_imzml import MSDataManagerImzML
from preprocess.ms_preprocess import MSIPreprocessor
from tools.plot import plot_spectrum

# Dataloading part only show once for blow examples
# Load data
# Data path
FILE_PATH = 'data/neg-gz4.imzML'
ms = MS()
ms_md = MSDataManagerImzML(ms, filepath=FILE_PATH)
ms_md.load_full_data_from_file()
sp = ms[0]

# Denoising processing (using directly set window size)
denoised_spectrum = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="ma",
    window=7  # Window size for moving average
)

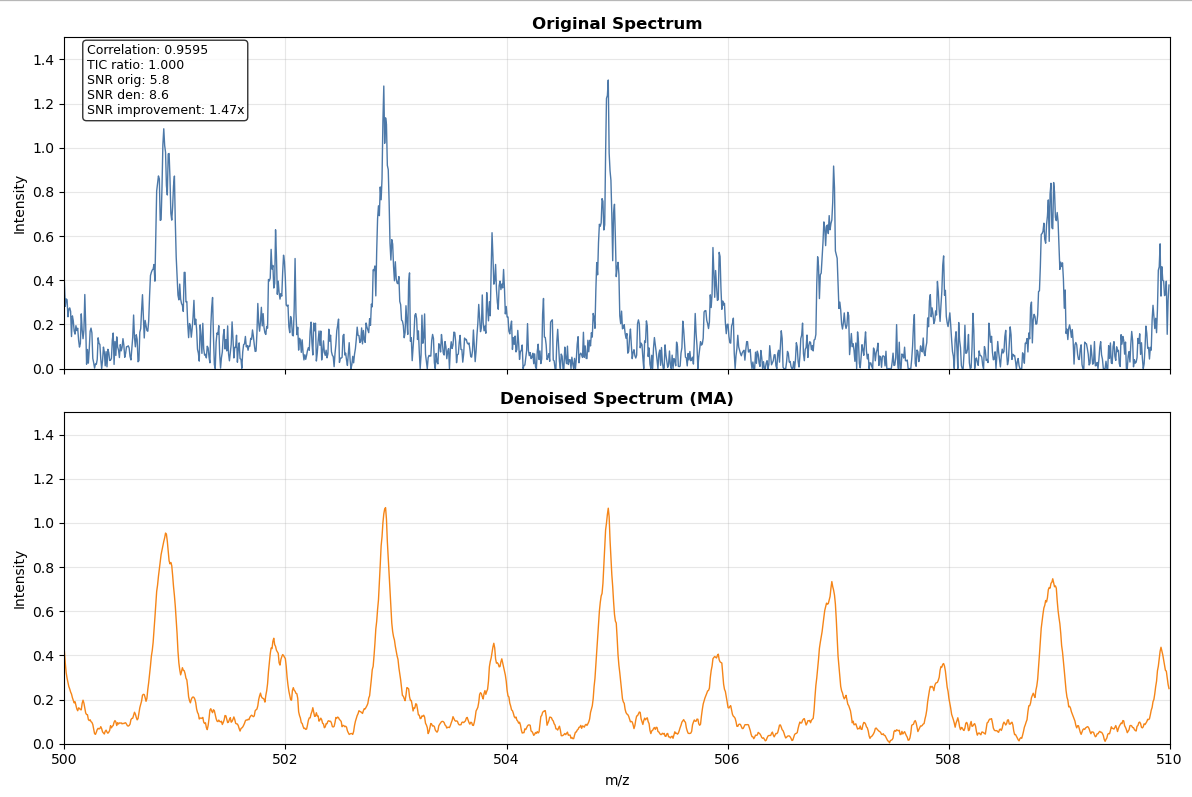

# Plotting (overlay original and denoised)
plot_spectrum(
    base=sp,
    target=denoised_spectrum,
    mz_range=(500.0, 510.0),
    intensity_range=(0.0, 1.5),
    metrics_box=True,
    title_suffix='MA',
)

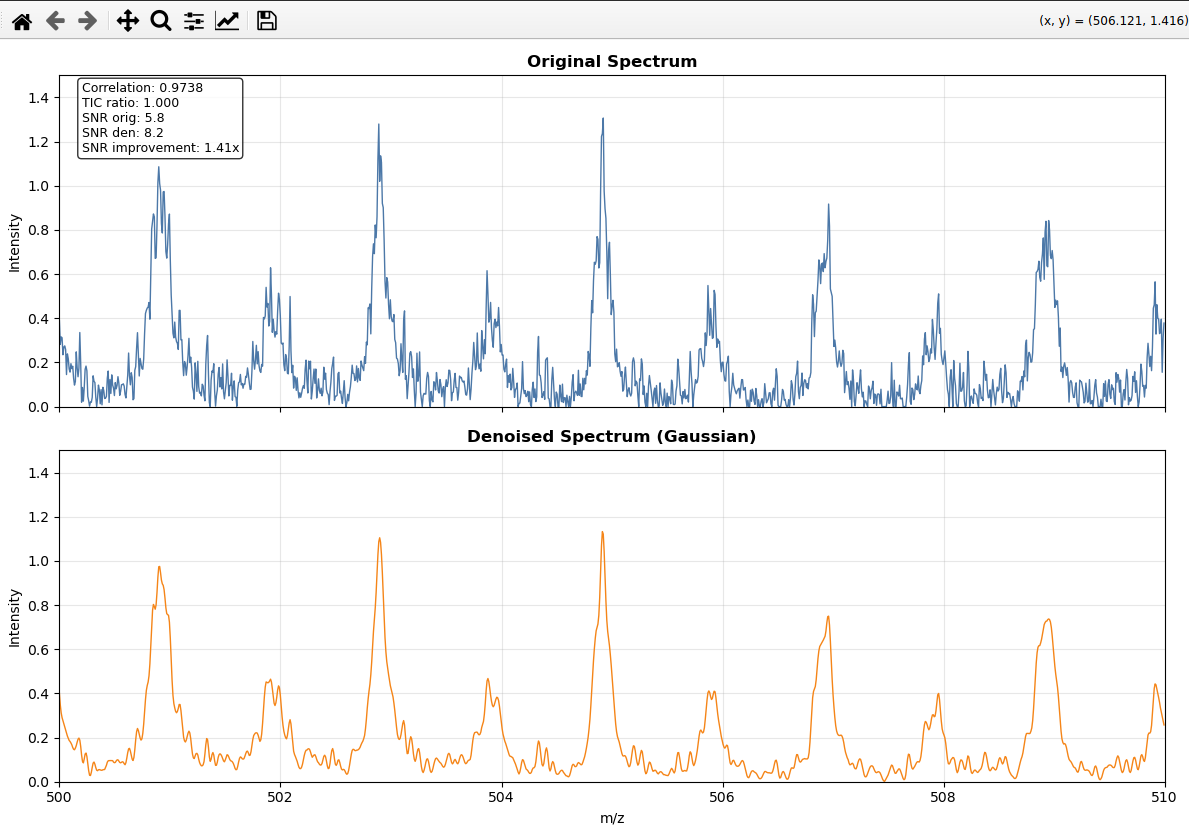

smooth_signal_gaussian

preprocess.filter_helper.smooth_signal_gaussian(
  intensity: np.ndarray,
  sd: float | None = None,
  window: int = 5,
) -> np.ndarray

• Description: Discrete Gaussian kernel smoothing; defaults to sd = window / 4.
• Parameters(Note that only the following parameters are available, other parameters do not affect the effectiveness of this smoothing method.):
  • sd (Gaussian standard deviation), default sd = window / 4.0
  • window (odd length),default = 5
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: window <= 0 or even; sd must be positive finite,intensity is not a 1D array.
  • TypeError: window must be integer.

Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="gaussian",
    window=7,
    # If default, it is set to `window / 4.0`
    # sd=None
    )

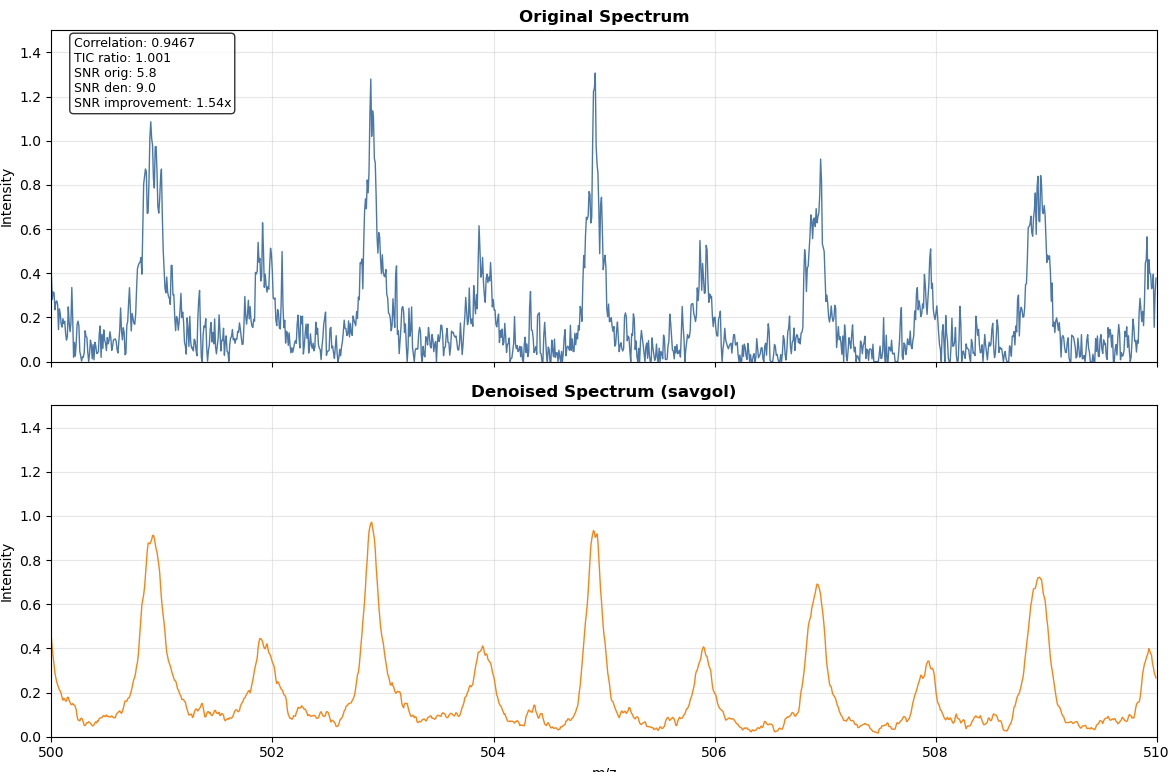

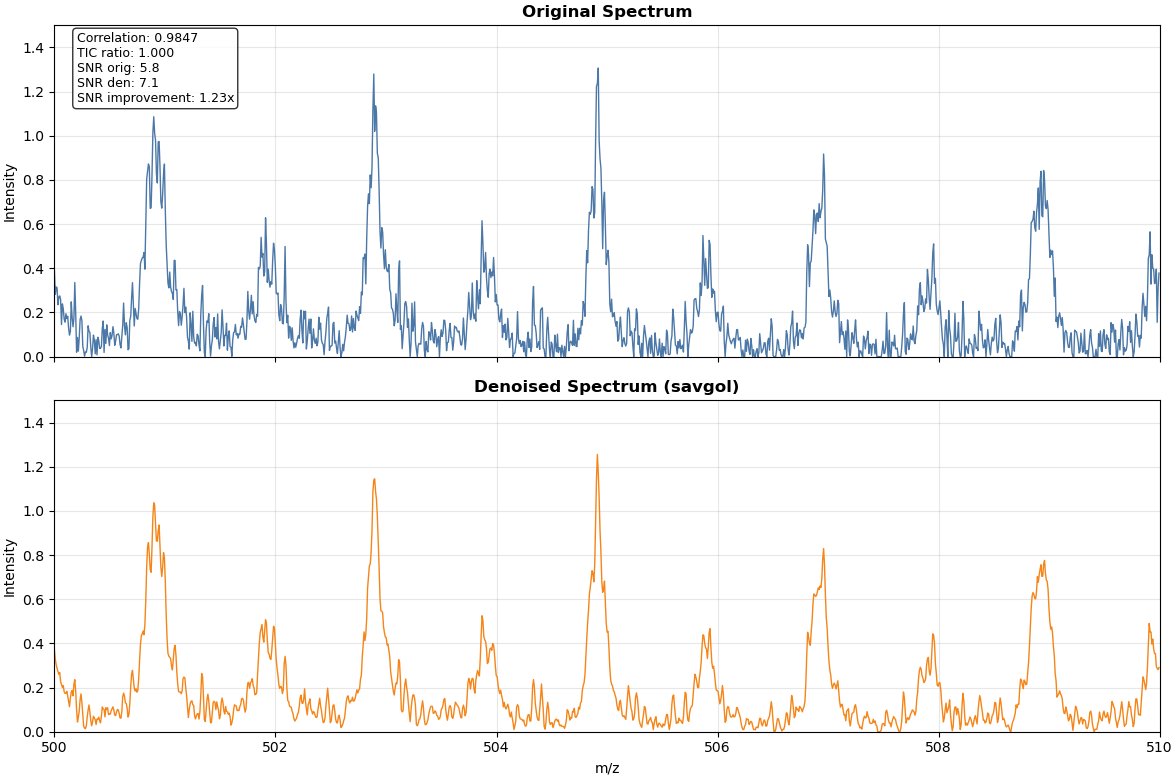

smooth_signal_savgol

preprocess.filter_helper.smooth_signal_savgol(
  intensity: np.ndarray,
  window: int = 5,
  polyorder: int = 2,
) -> np.ndarray

• Description: Savitzky-Golay polynomial fitting smoothing; automatically ensures window is odd and window >= 3. polyorder must be strictly less than window (a violation raises an error).
• Parameters:
  • window: Odd window size; minimum 3.
  • polyorder: Polynomial order; must be < window.
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: window <= 0 or even; polyorder must be less than window,intensity is not a 1D array.
  • TypeError: window and polyorder must be integer. Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="savgol",
    window=10,
    polyorder=1

)

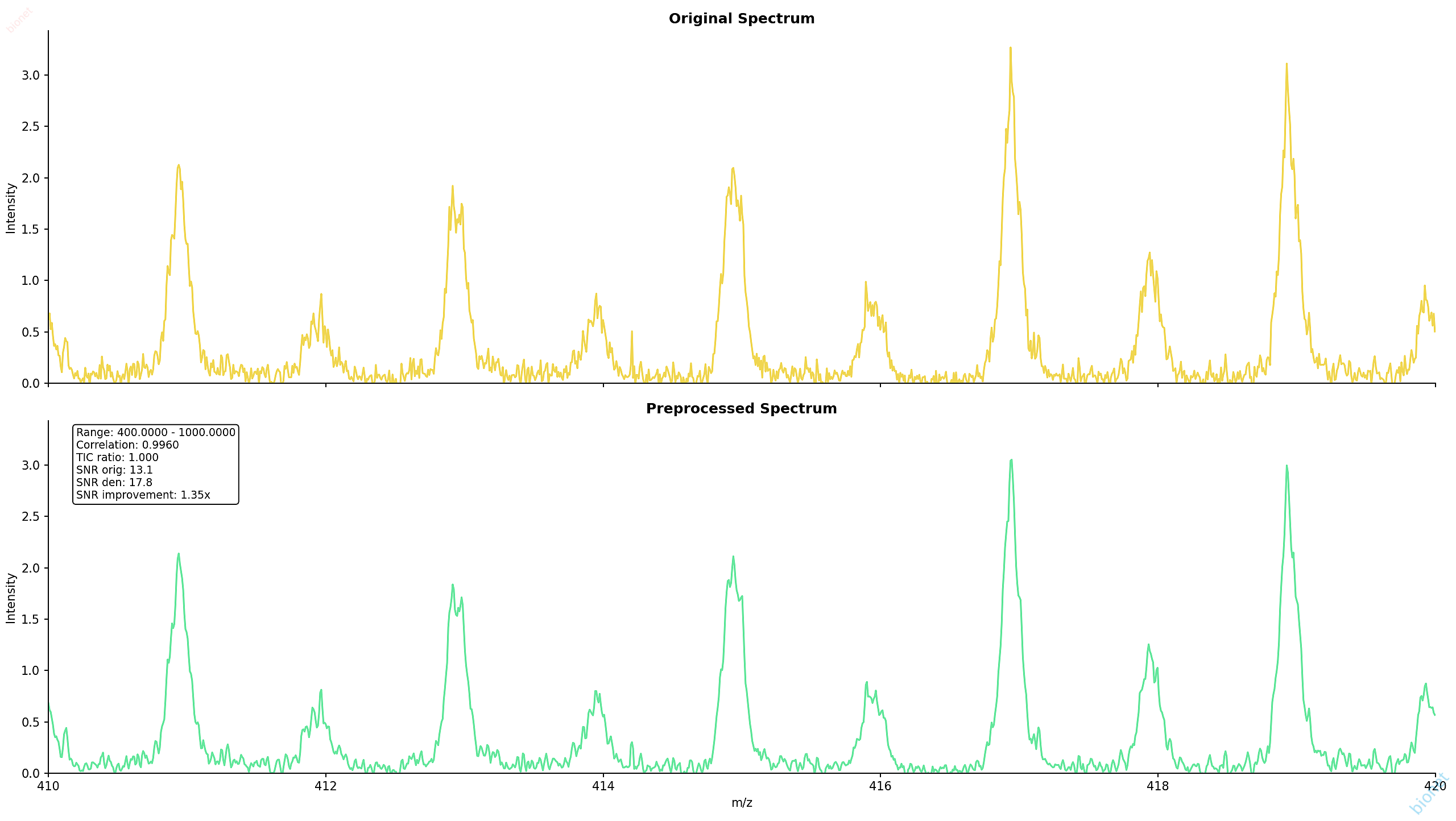

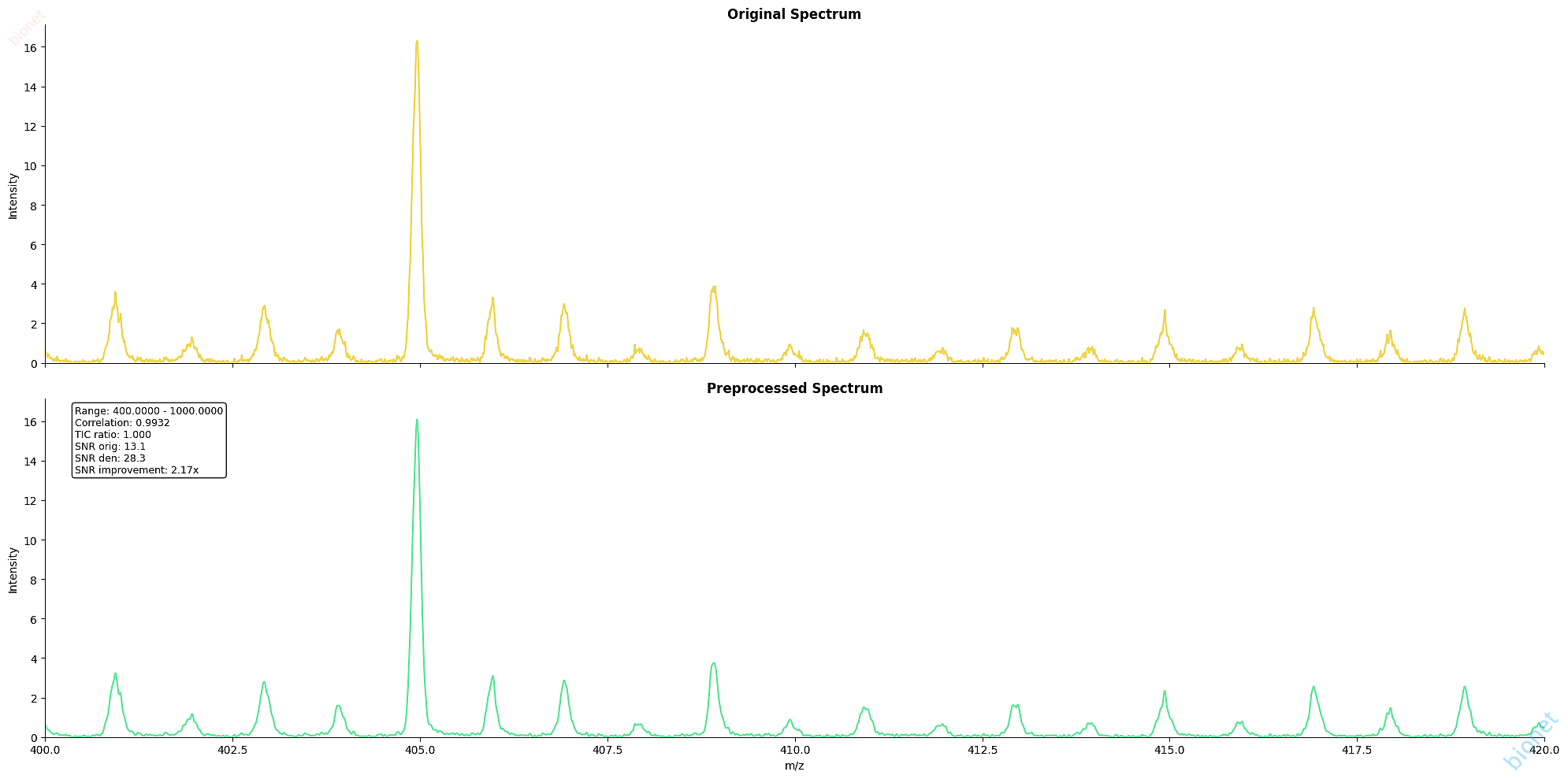

​ window=3, polyorder=1

smooth_signal_wavelet

preprocess.filter_helper.smooth_signal_wavelet(
  intensity: np.ndarray,
  wavelet: str = "db4",
  threshold_mode: str = "soft",
) -> np.ndarray

• Description: Wavelet threshold denoising; automatically estimates noise using Donoho-Johnstone universal threshold and applies soft/hard thresholding. The output length is guaranteed to match the input through proper wavelet reconstruction.
• Parameters(Note that only the following parameters are available, other parameters do not affect the effectiveness of this smoothing method.):
  • wavelet (e.g., db4, db8, haar, coif2),default db4
  • threshold_mode (soft/hard),default 'soft'
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ImportError: PyWavelets pywt not installed.
  • ValueError: threshold_mode must be 'soft' or 'hard',intensity is not a 1D array.

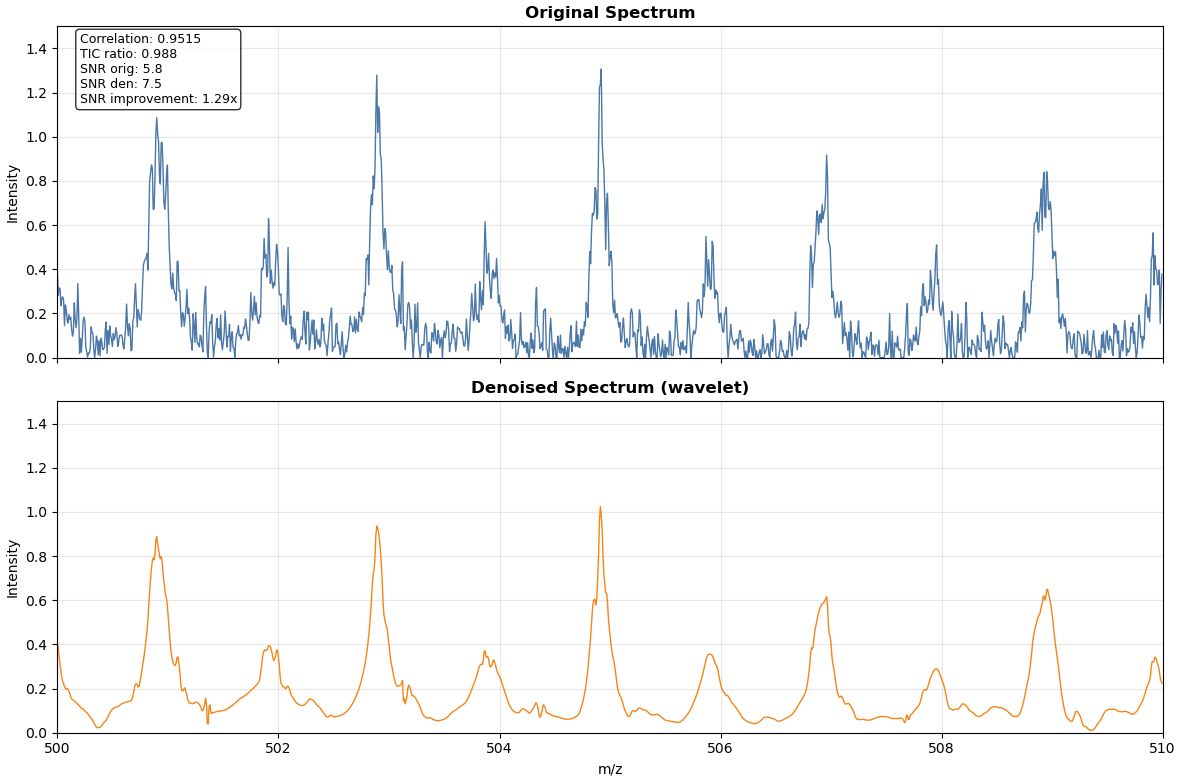

Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="wavelet",
)

smooth_ns_signal_ma

preprocess.filter_helper.smooth_ns_signal_ma(
  intensity: np.ndarray,
  index: np.ndarray,
  k: int = 5,
  p: int = 2,
) -> np.ndarray

• Description: Uniform neighborhood smoothing over the k nearest neighbors (row-wise mean). Index validation and fallback are handled upstream.
• Parameters(Note that only the following parameters are available, other parameters do not affect the effectiveness of this smoothing method):
  • k (number of neighbors),default 5,
  • p (distance metric),default 2.
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: k < 1 or p < 1,intensity is not a 1D array.
  • TypeError: k and p must be integers.

Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="ma_ns",
    window=10,  # window maps to k
    p=2
)

smooth_ns_signal_gaussian

preprocess.filter_helper.smooth_ns_signal_gaussian(
  intensity: np.ndarray,
  index: np.ndarray,
  k: int = 5,
  p: int = 2,
  sd: float | None = None,
) -> np.ndarray

• Description: Applies Gaussian weighting to neighborhood distances; the exponent is clipped to avoid underflow, and row normalization avoids division by zero.
• Default: sd = median(max_row_distance) / 2.0.
• Parameters:
  • index: 1D coordinates aligned with intensity.
  • k: number of neighbors (>=1).
  • p: Minkowski distance parameter (>=1).
  • sd: Gaussian scale over neighbor distances; auto-estimated if None.
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: k < 1 or p < 1,intensity is not a 1D array.
  • TypeError: k and p must be integers.
• Notes: If index is None or length-mismatched, it falls back to np.arange(...) with a warning.

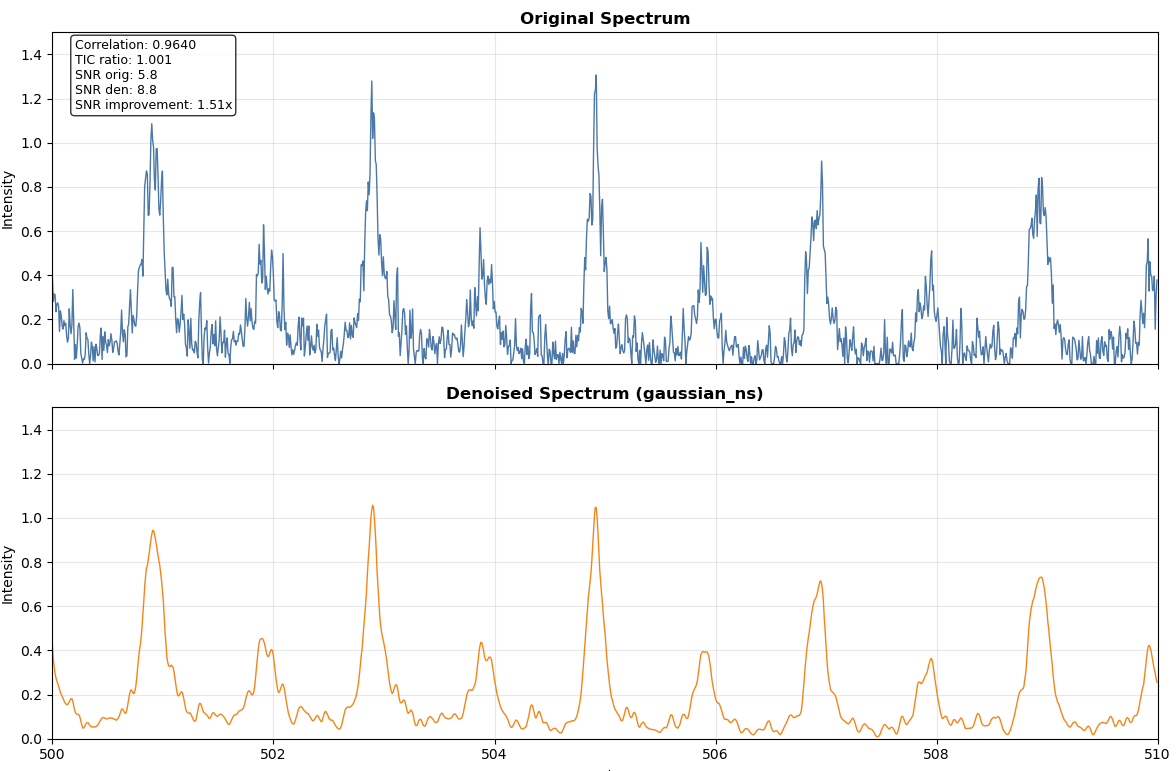

Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="gaussian_ns",
    window=10,  # window maps to k
    p=2,
    sd=None
)

smooth_ns_signal_bi (Bilateral)

preprocess.filter_helper.smooth_ns_signal_bi(
  intensity: np.ndarray,
  index: np.ndarray,
  k: int = 5,
  p: int = 2,
  sd_dist: float | None = None,
  sd_intensity: float | None = None,
) -> np.ndarray

• Description: Bilateral weighting that considers both m/z distance and intensity difference; suitable for edge-preserving smoothing.
• Parameters:
  • index: 1D coordinates aligned with intensity.
  • k: number of neighbors (>=1).
  • p: Minkowski distance parameter.
  • sd_dist: spatial Gaussian scale over neighbor distances; default median(max_row_distance)/2.
  • sd_intensity: intensity Gaussian scale; default stats.median_abs_deviation(intensity, scale="normal").
• Returns: A 1D intensity array of the same length as the input.
• Exceptions:
  • ValueError: k < 1 or p < 1,intensity is not a 1D array.
  • TypeError: k and p must be integers.
• Notes: Both exponent terms are clipped to avoid numerical underflow; weights are row-normalized.

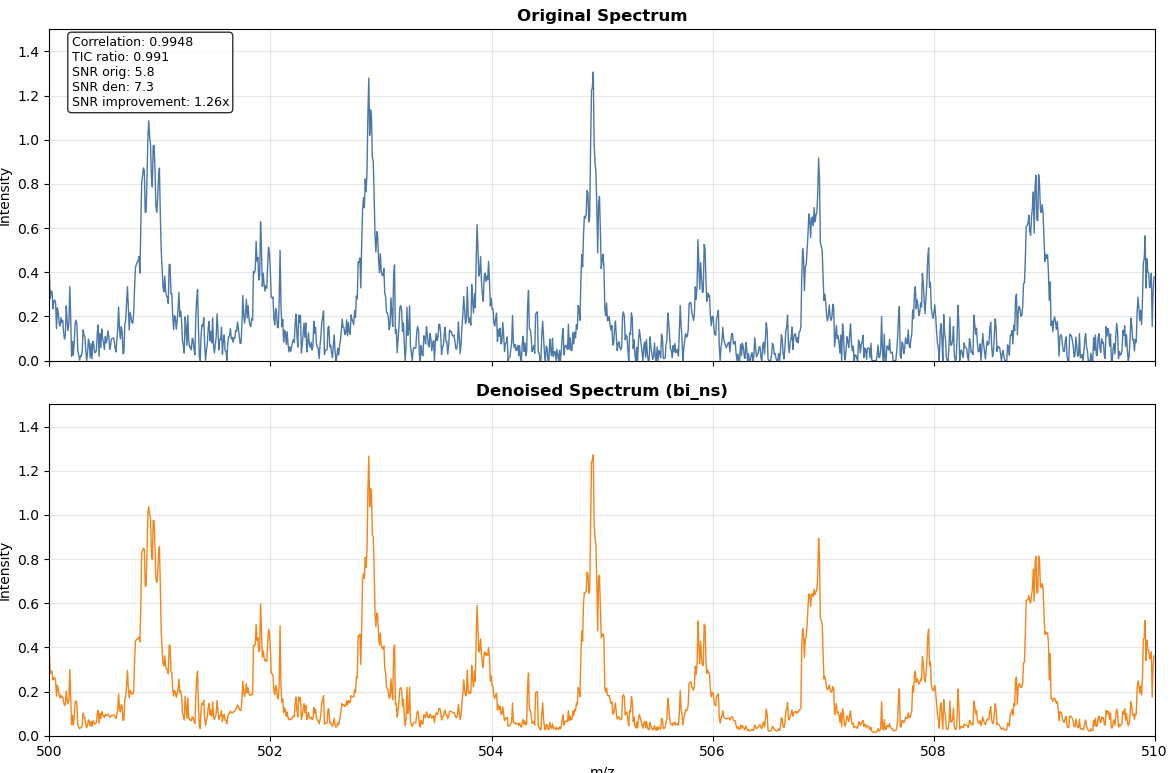

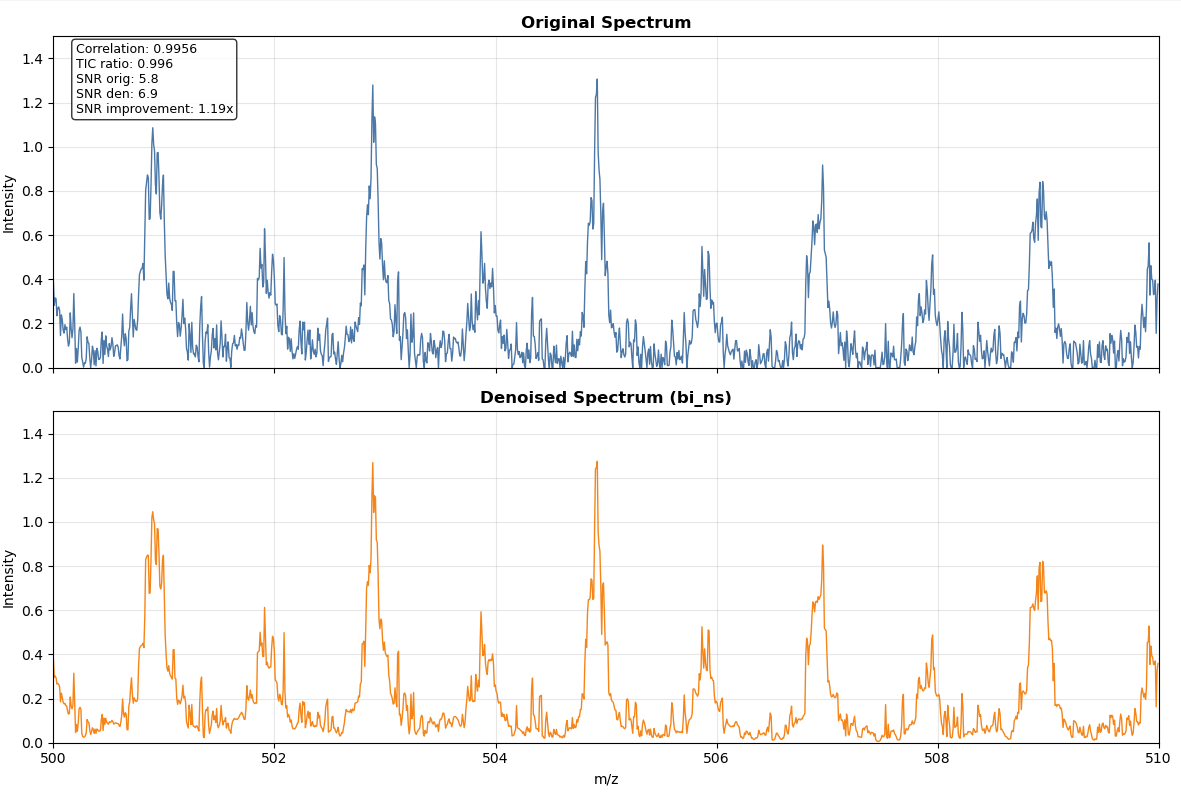

Example:

denoised = MSIPreprocessor.noise_reduction_spectrum(
    data=sp,
    method="bi_ns",
    window=10,  # window maps to k
    p=2
)

window =10

window=20:

Parameter Descriptions and Tuning Suggestions

• window (Convolution/SG window or neighbor count k in NS methods)
  • Positive integer. Savitzky-Golay: auto-coerced to odd and minimum 3. Moving Average/Gaussian: even windows are automatically coerced to odd for centered alignment.
  • Recommendation: 5–15 (adjust based on peak width and noise intensity).
• coef (Custom convolution kernel)
  • Automatically normalized when passed; its length determines the effective window.
• sd (Gaussian kernel scale)
  • Convolution default sd = window / 4.0.
  • Neighborhood Gaussian default sd = median(max_row_distance) / 2.0 (data-adaptive).
• polyorder (Polynomial order for SG)
  • Must be less than window; recommended 1–2. Auto-lowered if needed.
• wavelet and threshold_mode
  • Recommendation: db4 + soft; for strong noise, try hard.
• k (Number of neighbors for neighborhood search)
  • k >= 1; too large can lead to over-smoothing; generally 5–11.
• p (Minkowski distance parameter)
  • p=1 for Manhattan, p=2 for Euclidean; higher p emphasizes distance differences more.
• sd_intensity (Scale of intensity difference for bilateral filter)
  • Defaults to median_abs_deviation(intensity, scale="normal").

References

Error Handling and Logging

• All input validation errors are logged via logger.error before raising TypeError or ValueError.

• Savitzky-Golay: window is coerced to odd; if polyorder >= window, a ValueError is logged and raised.

• Gaussian and Moving Average: window must be a positive integer; if even, it is coerced to odd. sd must be positive.

• Neighborhood methods: when index is missing or mismatched, a logger.warning is emitted and it falls back to np.arange(len(intensity)) for KD-tree queries.

• preprocess/filter_helper.py (Core implementation of filtering/denoising)

• preprocess/ms_preprocess.py (Unified entry point and parameter dispatch)

• module/ms_module.py (Data structure for SpectrumBaseModule)

• tools/plot.py (Plotting utilities for SpectrumBaseModule)
