Normalization

This page introduces the normalization module in MassFlow.

Authors: Leqiang Dong, Jingwei Dong

Feedback: If you find any problems while using MassFlow or reading the documentation, you can submit feedback through GitHub Issues, or contact us by email at 707244007@qq.com.

Overview

The overall signal intensity of different pixels may be affected by tissue thickness, sample amount, ionization efficiency, and changes in instrument response. Intensity normalization adjusts each spectrum to a comparable scale, reducing the effect of a spectrum being globally stronger or weaker on ion images and downstream statistical analysis.

• Input and output
  • The input is the mass-spectrometry data to be processed. Users only need to provide the data-file path; MassFlow automatically reads the m/z values and signal intensities for each pixel.
  • The output is normalized mass-spectrometry data. The m/z positions and pixel coordinates remain unchanged, while the intensities are replaced by normalized values.
• Methods
  • TIC (Total Ion Current) normalization (tic_numba): scales each spectrum so that the sum of all intensities equals a specified value.
  • RMS (Root Mean Square) normalization (rms_numba): scales each spectrum so that its RMS equals a specified value.
  • Reference-peak normalization (ref_numba): scales each spectrum so that the signal near a specified m/z value is normalized to a target value.

Function Description

Preprocessor.normalization

massflow.preprocess.api.PreprocessorAPI.normalization(
    *,
    method: str = "tic_numba",
    scale: float | None = None,
    ref: float | None = None,
    ref_tolerance: float = 0.1,
) -> Self

• Function: performs normalization on all spectra in batches.

• Parameters:

  • method: normalization method, default "tic_numba". Three methods are available: "tic_numba", "rms_numba", and "ref_numba".

    • “tic_numba” normalizes based on the total ion current of each mass spectrum. This is suitable for situations where you want to reduce differences in the overall total signal intensity across different pixels.
    • “rms_numba”: Normalizes based on the root-mean-square (RMS) intensity of each mass spectrum. Since intensities are squared when calculating the RMS, high-intensity signals have a relatively greater impact on the normalization factor.
    • “ref_numba”: Normalizes based on a specified reference peak. Use this when known internal standard peaks or other clear and stable reference signals are present in the experiment.

  • scale: optional scaling factor applied after normalization. The value must be finite and non-negative. If supplied, normalized intensities are multiplied by this value. A common use is to set TIC-normalized data to 1,000 or 10,000 for easier numerical display.

  • ref: target internal-standard m/z value, used by method="ref_numba" and If no value is entered, the program will automatically use the midpoint of the currently input m/z data as a temporary reference value.

  • ref_tolerance: matching tolerance for the reference peak, used by ref_numba. Default: 0.1 Da. The value must be finite and non-negative.

Example:

from massflow.data_manager import MSDataManagerImzML
from massflow.preprocess.preprocessor import Preprocessor
from massflow.tools.plot import plot_spectrum

FILE_PATH = "data/example.imzML"
dm = MSDataManagerImzML(filepath=FILE_PATH)
dm.load_head_data()

normalized = (
    Preprocessor(dm)
    .noise_reduction(method="gaussian_numba", window=7)
    .normalization(method="tic_numba")
    .start()
)

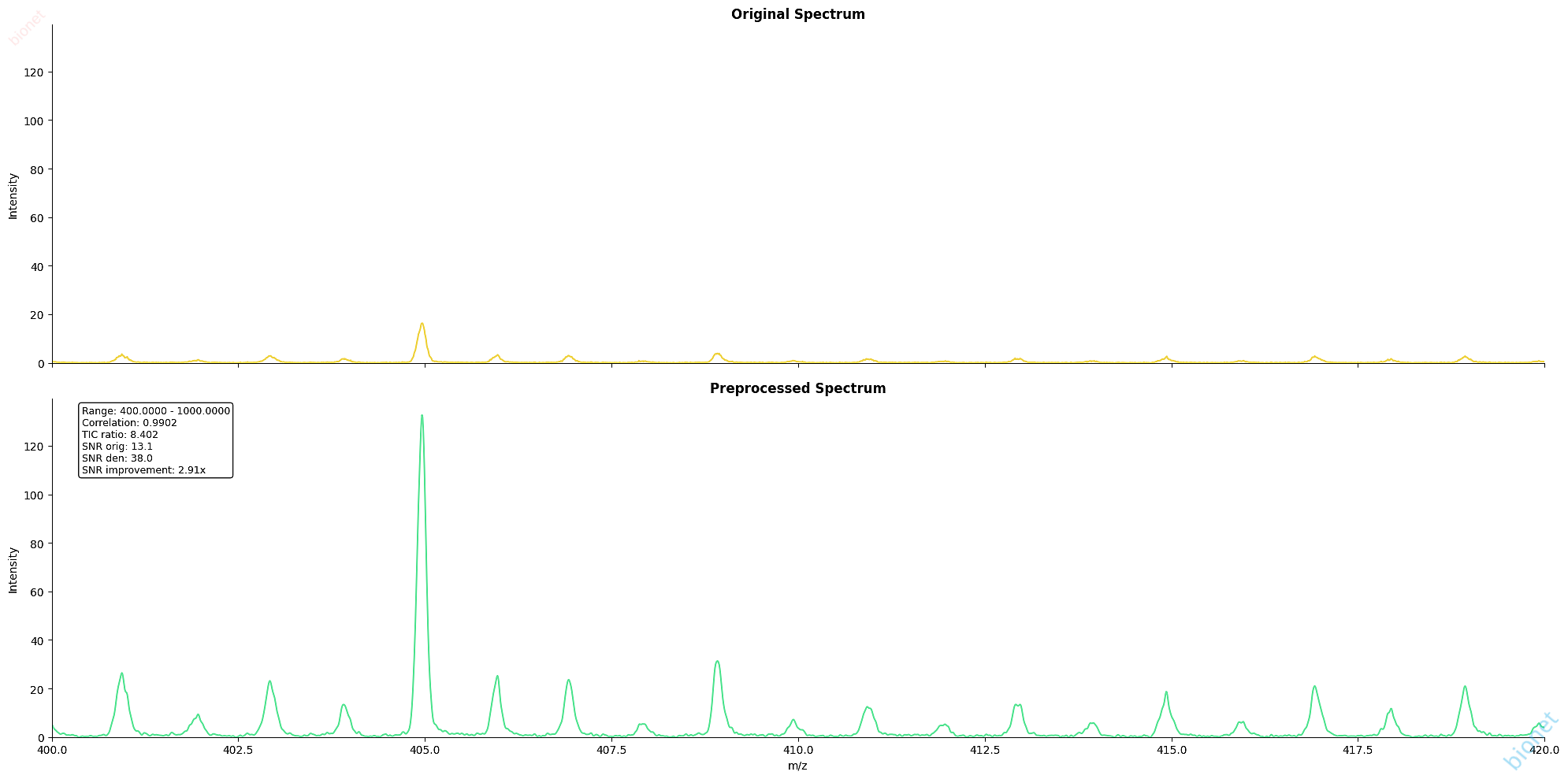

plot_spectrum(
    base=dm.ms[100],
    target=normalized.ms[100],
    mz_range=(400.0, 420.0),
    metrics_box=True,
)
normalized.close()
dm.close()

This example performs the following steps:

1. Read the imZML data.
2. Calculate the total ion current of each spectrum.
3. Divide every signal intensity in each spectrum by that spectrum's total intensity, so that the normalized total intensity equals 1.

Overall Workflow

Method Details

TIC Normalization (tic_numba)

The entire spectrum is scaled according to the sum of all signal intensities in that spectrum. After normalization, the sum of all signal intensities in one spectrum is 1. If scale is set, the normalized result is multiplied by scale, and the total signal intensity is then approximately equal to scale.

Use case: suitable for reducing differences in total signal amount between pixels so that spectra from different pixels can be compared more easily.

RMS Normalization (rms_numba)

All peaks are scaled according to the root mean square intensity of the spectrum, . After normalization, the RMS of the spectrum is 1. If scale is set, the normalized result is multiplied by scale, and the RMS is then approximately equal to scale.

Since intensity is squared during the calculation, high-intensity signals contribute relatively more to the RMS value. Therefore, RMS normalization and TIC normalization may produce different scaling results for mass spectra with different intensity distributions.

Reference-Peak Normalization (ref_numba)

Reference-peak normalization uses a predefined ion peak as a reference and scales the other peaks in each spectrum according to the intensity of that reference peak. If scale is set, the normalized result is multiplied by scale.

It is recommended to explicitly set the target internal-standard m/z value with ref and choose an appropriate reference-peak matching tolerance with ref_tolerance. If method="ref_numba" is used without set ref, the program automatically selects the middle position of the currently supplied m/z data as a temporary reference value. In actual analysis, set ref according to the internal standard used in the experiment or a known stable ion peak rather than relying on the automatically selected value.

The following figures show ion images produced after the three normalization methods:

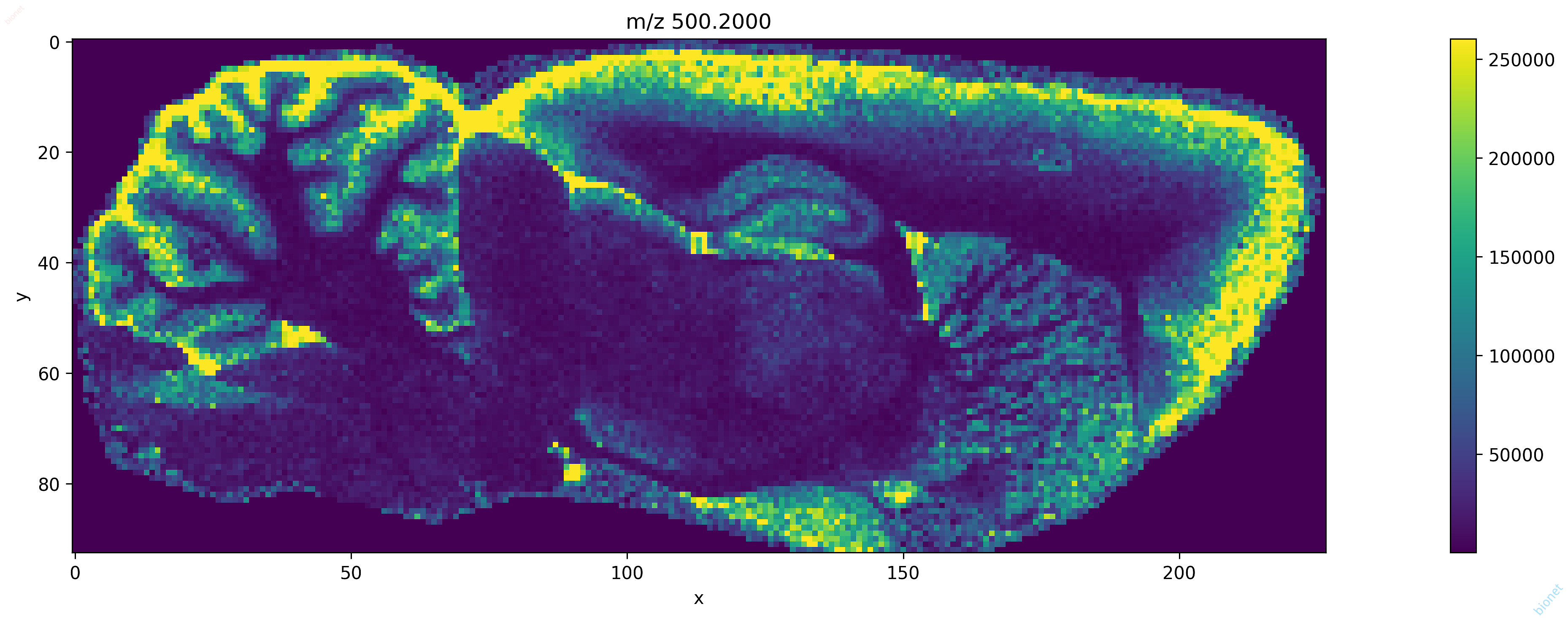

TIC normalization (tic_numba):

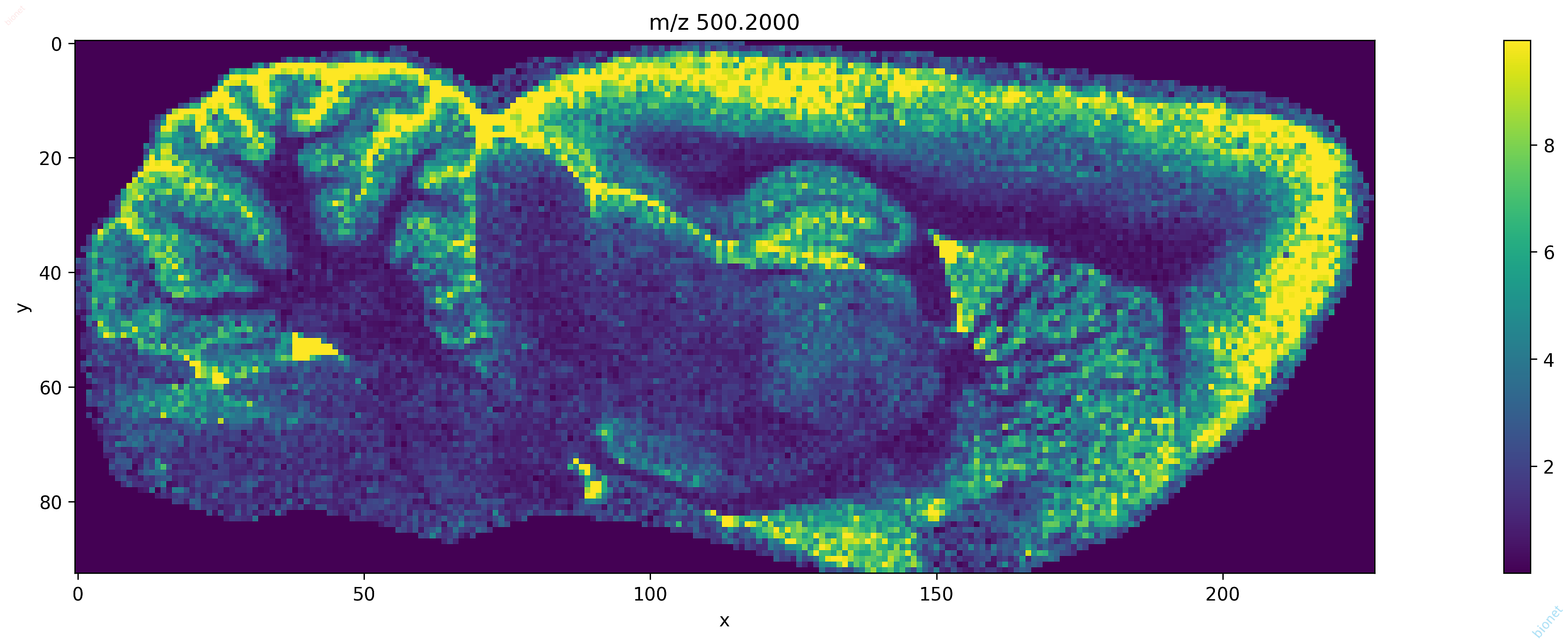

RMS normalization (rms_numba):

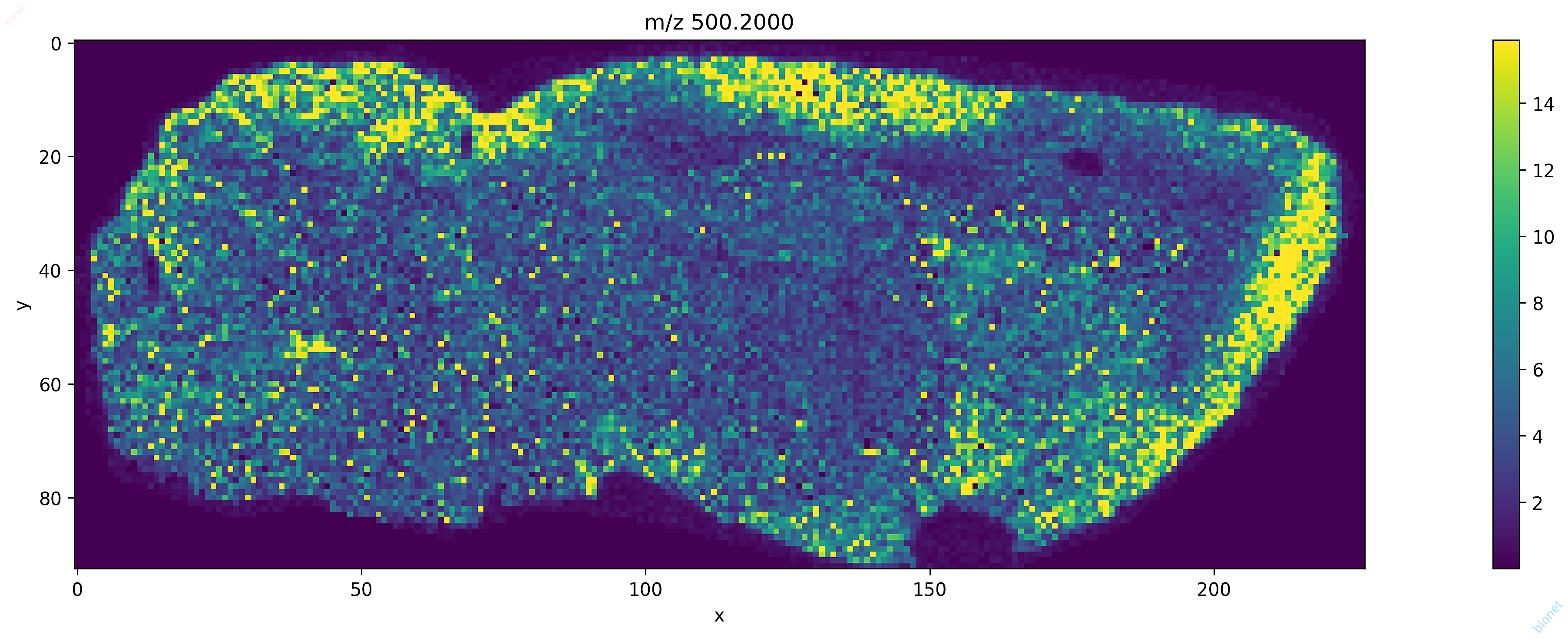

Reference-peak normalization (ref_numba) with ref=500:

Error Handling and Logging

• Input validation: the input data must be a non-empty one-dimensional NumPy array; otherwise, a TypeError is raised.

• method validation: only "tic_numba", "rms_numba", and "ref_numba" are supported.

• When using “ref_numba”, you should check whether ref falls within the m/z range of the current data and ensure that the reference peak has a valid signal in the mass spectrum to be compared.

References

• preprocess/helper/normalizer_helper.py: normalization dispatcher (normalizer)
• preprocess/numba/normalization_numba.py: Numba-accelerated implementation (normalizer_numba)
• preprocess/flat_pre_fun.py: FlatPreprocess.normalization_flat, preprocessing entry point for flat data arrays
• preprocess/api.py: PreprocessorAPI.normalization, API entry point for normalization
